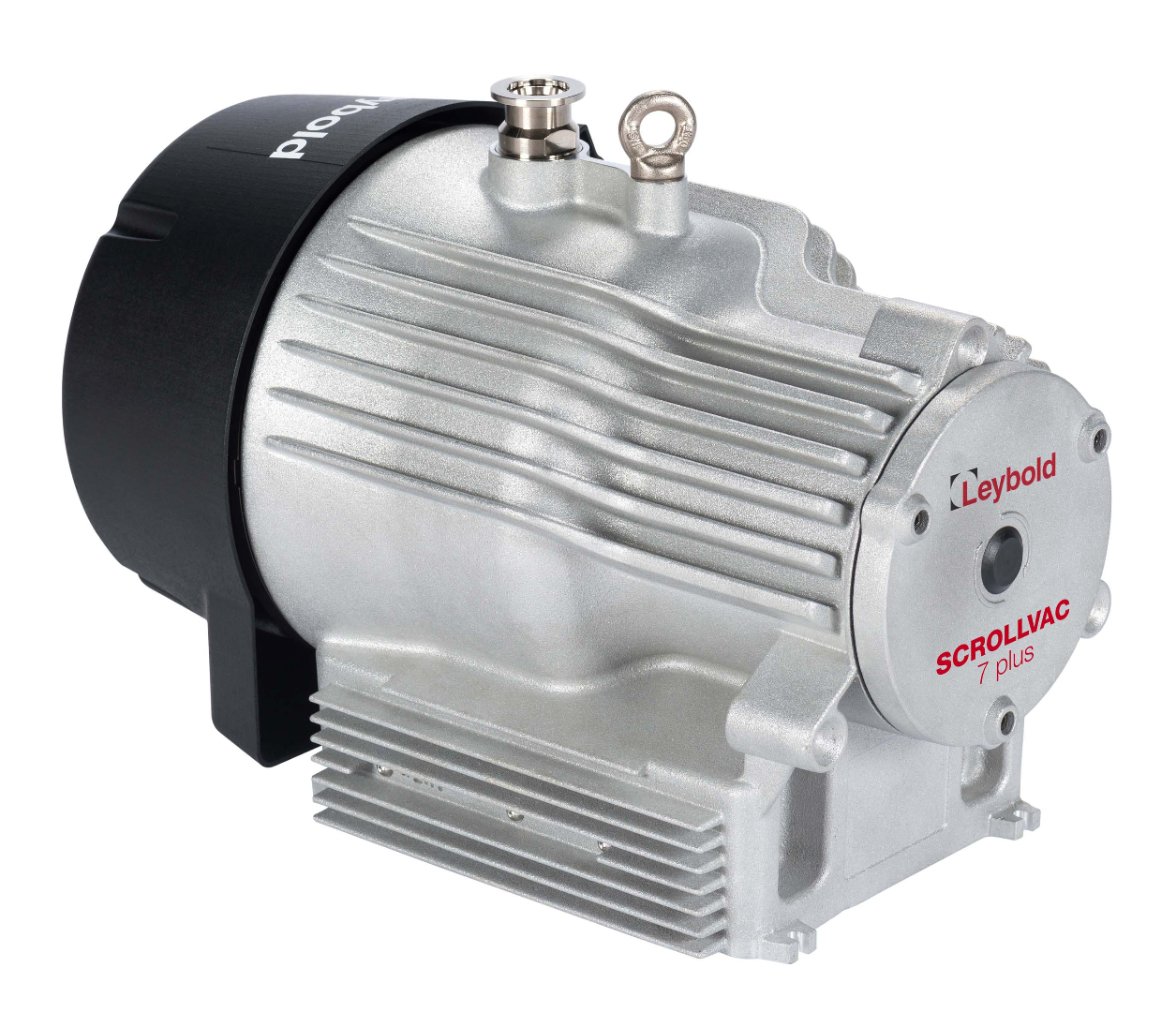

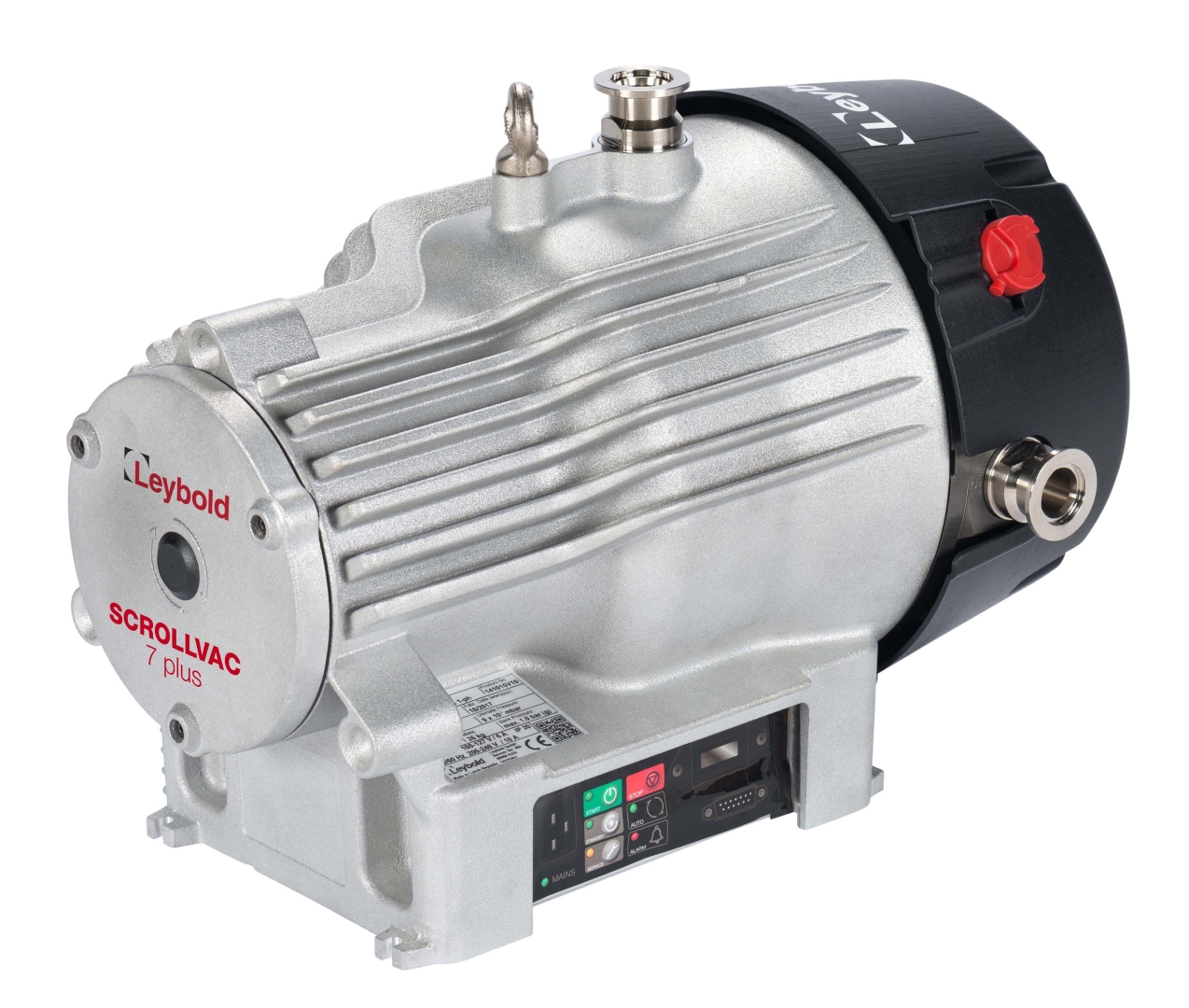

SCROLLVAC 7 plus
|
Part number:
|
141007V10
|
|
Exhaust flange:
|
DN 25 ISO-KF
|
|
Inlet flange:
|
DN 25 ISO-KF
|
|
Mains voltage with single-phase motor:
|
100-127 V, 200-240 V (± 10%), 50/60/ Hz
|
|

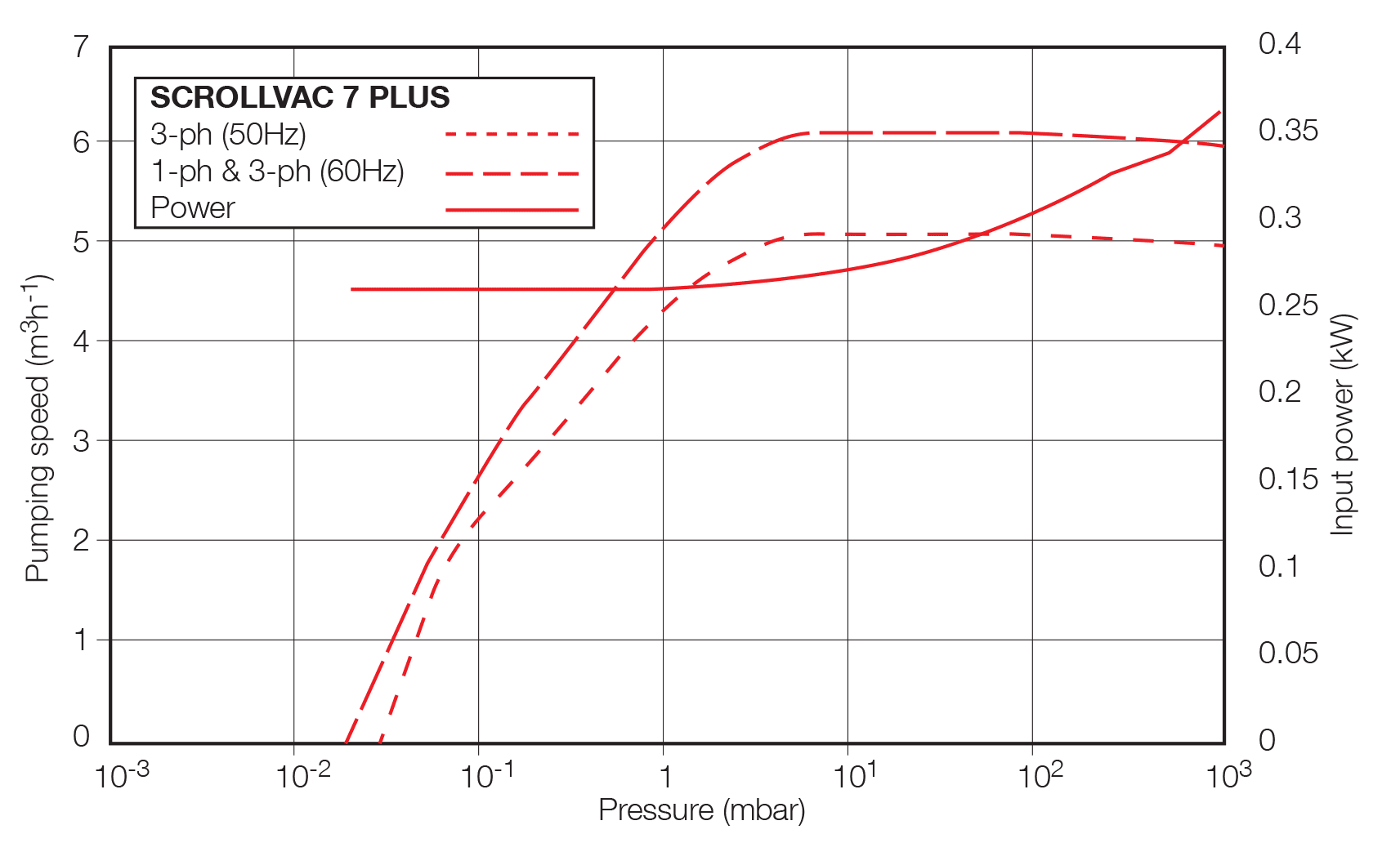

Max. pumping speed:
|
6.1 m3/h
|
|
Motor:
|
1-ph
|
|
Noise level:
|
< 55 dB(A)
|
|
Power consumption at ultimate pressure:
|
260 W
|
|
Ultimate pressure with closed gas ballast:
|
0.02 mbar
|
|
Weight:
|
26 kg
|
Download Brochure
