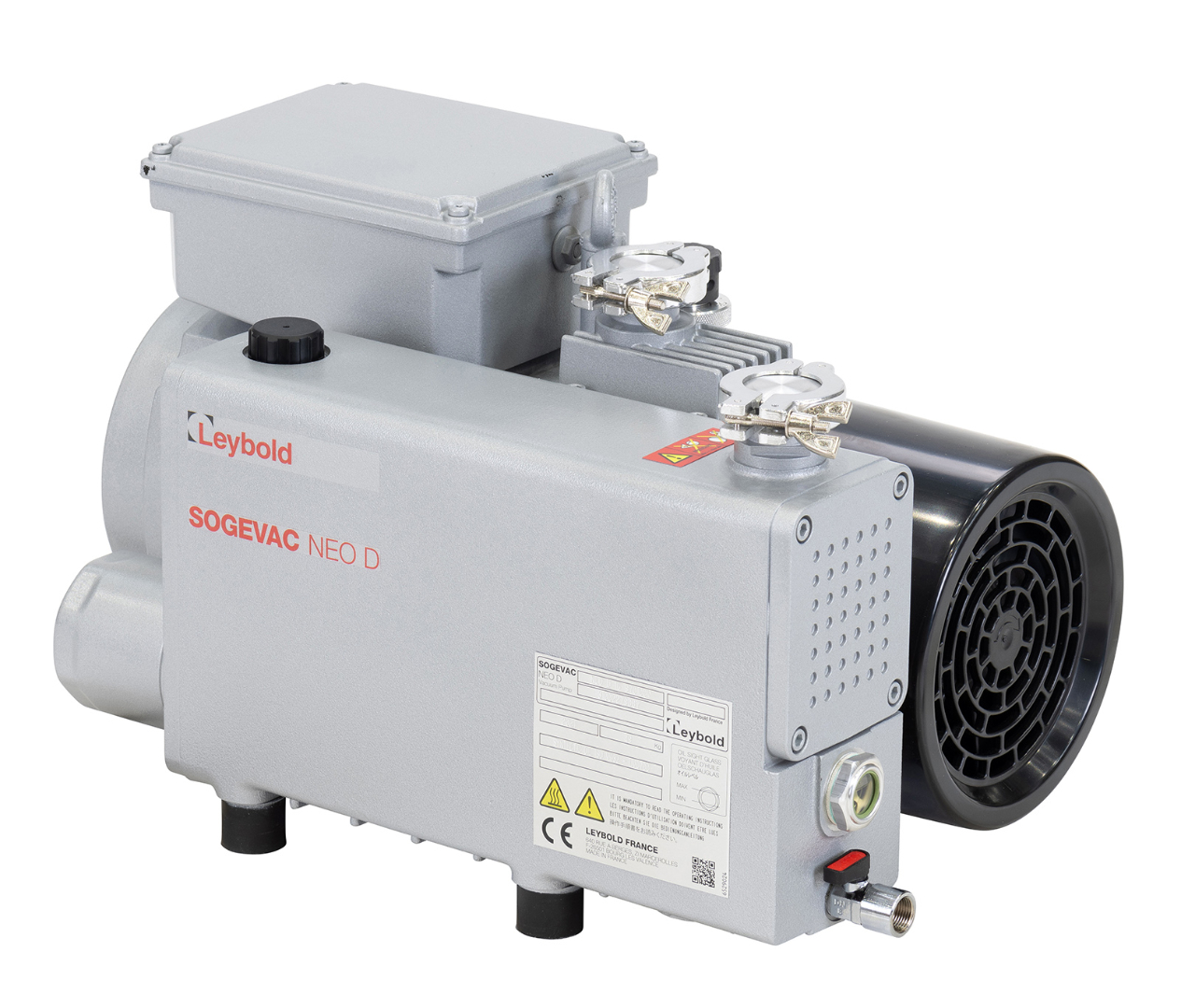

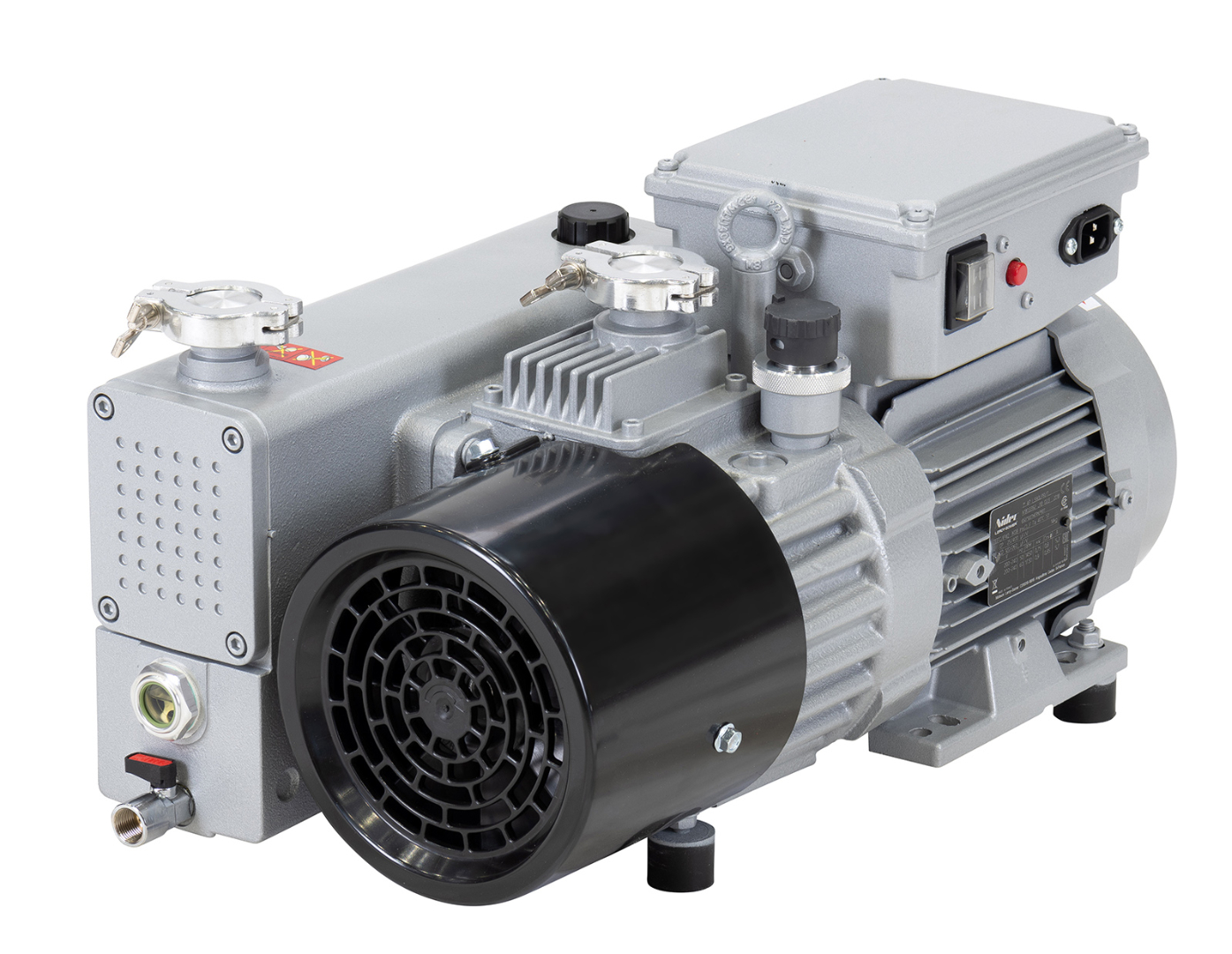

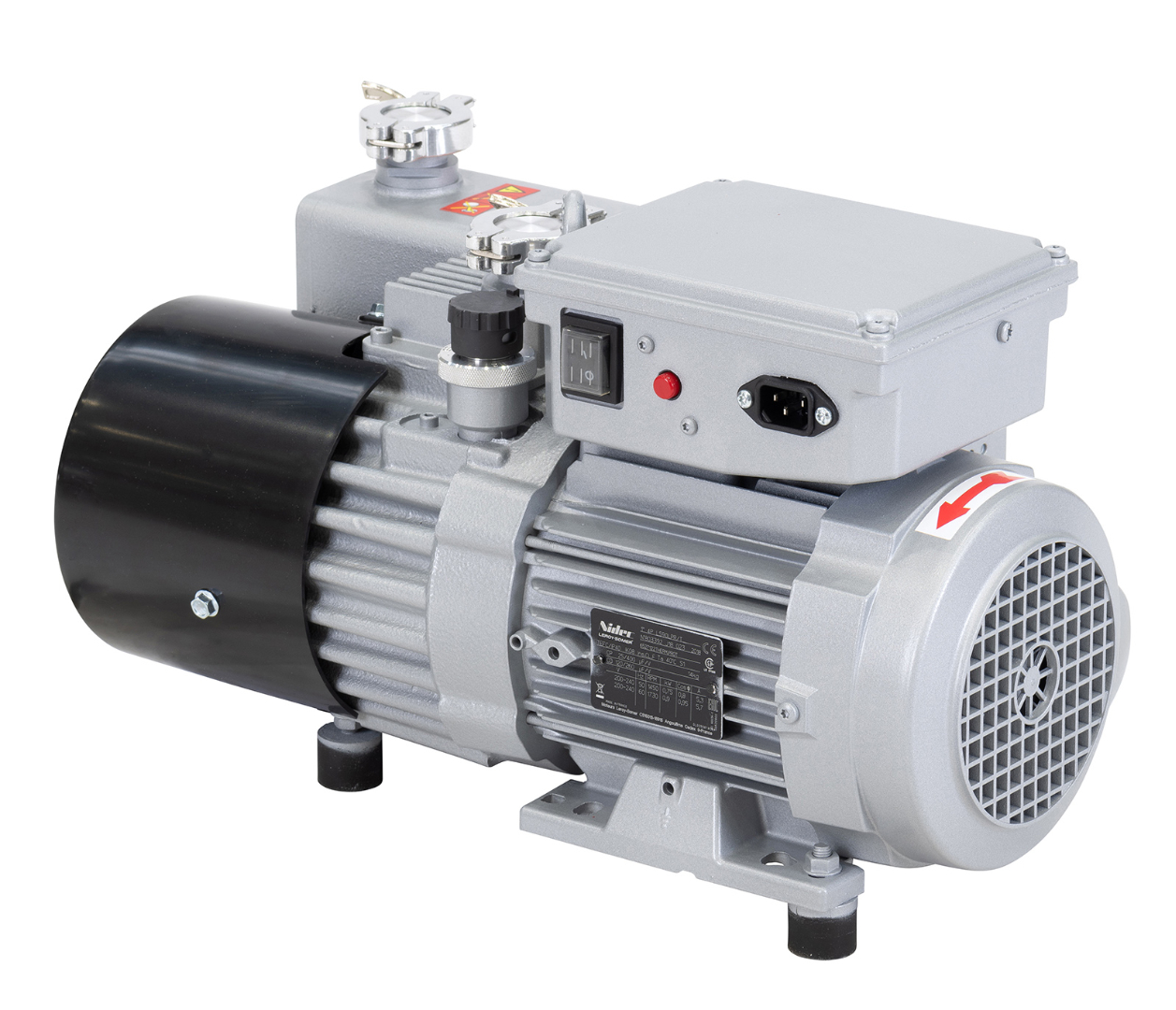

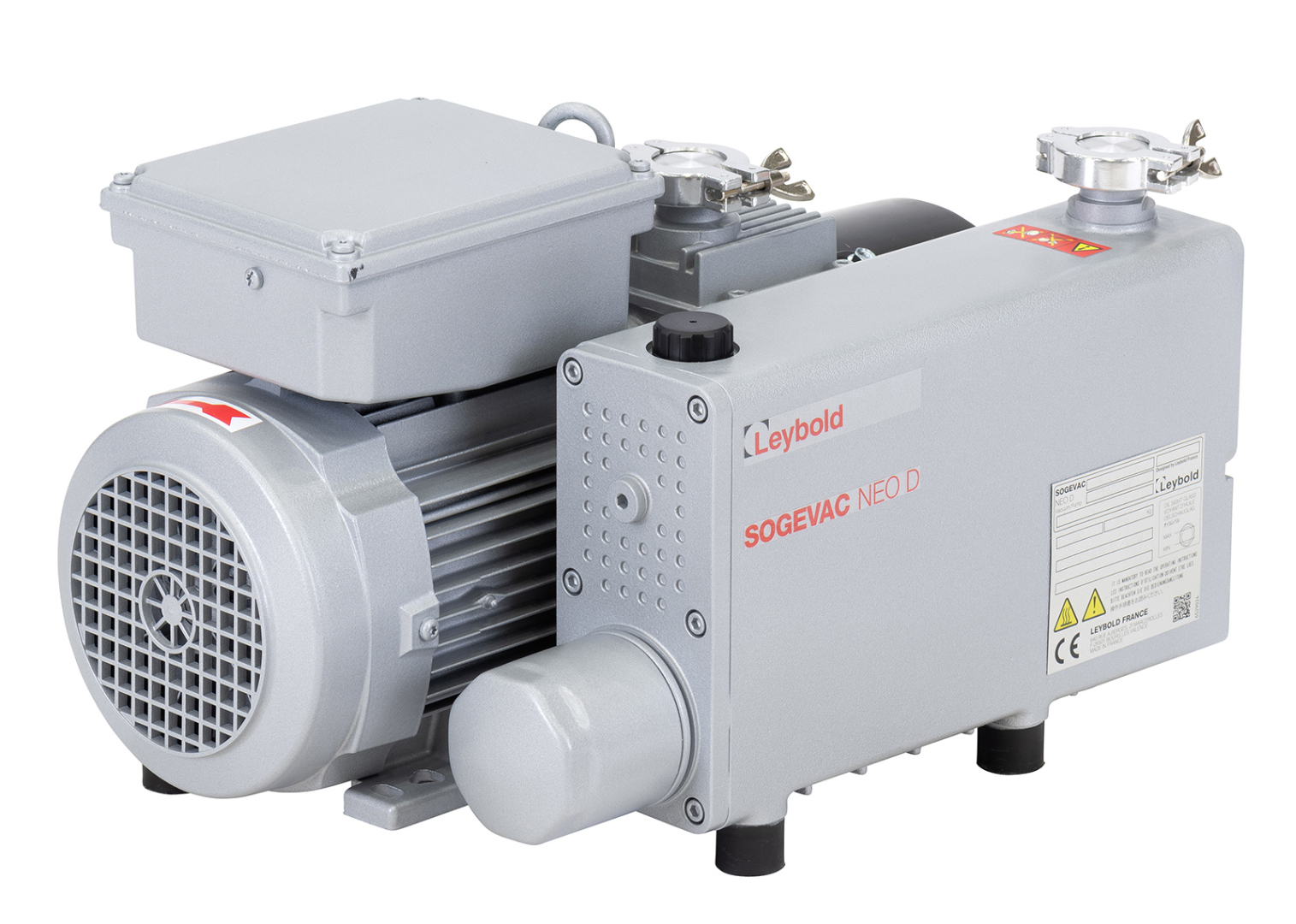

SOGEVAC NEO D 16

The new generation of SOGEVAC vacuum pumps. Triple-hitting vacuum technology for a clean, quiet and long-running performance.


Pairing health and safety with efficient processes is a vital need for any workplace, from research labs to industrial manufacturers. When processes rely on continuous vacuum, choosing the right components becomes all the more essential. Reliable, high-performance vacuum technology not only gets the job done, but also contributes to a better work environment with less noise and fewer emissions. The result is greater well-being and peace of mind – for higher employee productivity and precision in demanding applications.
When it comes to these universal challenges, the new SOGEVAC NEO D rotary vane vacuum pump offers a bundle of advantages. But most of all, it is cleaner, quieter and virtually maintenance-free.


Effective pumping speed:
  16 / 19 m3/h
Flange:
  DN 25 ISO-KF
Frequency:
  50 / 60 Hz
Noise level:
  54 dB(A)
Oil volume:
  1.5 l
Rated pumping speed:
  19 / 23 m3/h
Ultimate pressure with gas ballast:
  < 1 x 10-1 mbar
Ultimate pressure without gas ballast:
  < 8 x 10-3 mbar
Water vapor tolerance:
  10 mbar
Weight:
  50 kg
